Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-142

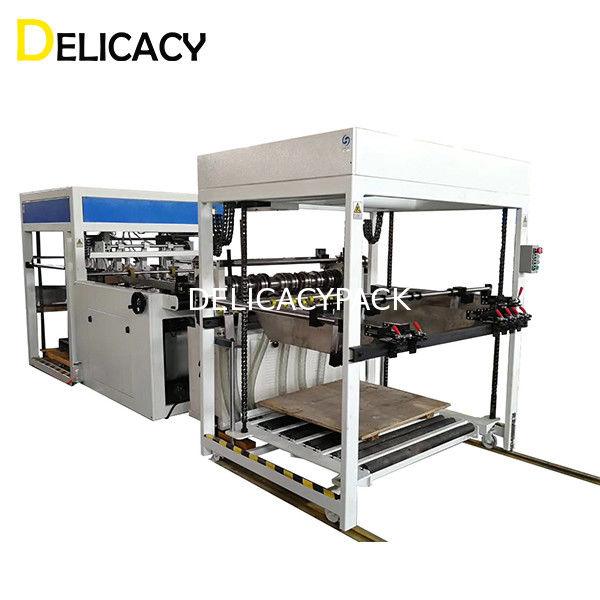

Superb Reliable Automatic Feed-In Metal Tin Can Body Making Circle Knife Gang Slitting Machine For Chemical Tin Can
Including automatic sheet feeder, feeding erection platform, slitter, cutter grinder, body blank stacker and waste trimming material collector
With 8 pairs of carbide cutters
| Min. sheet size | 400*400mm |
| Max. sheet size | 1100*1100mm |
| Sheet thickness | 0.15-0.5mm |
| Max. speed | 48 sheets/min |
| Total power | 7.5Kw |
| Voltage | AC 380V 50Hz |
| Air pressure | 0.4-0.6MPa |
| Total weight | about 3000Kg |
| Payload of feeder & stacker | 3000Kg |
| Overall dimension | 6000*1800*1700mm |
Advantages:
1. Our duplex slitter takes the tinplate with a vacuum, and uses a gear motor to automatically control the height of the tin plate.
2. The wheel cutter's rotation is stable and has a sleep operation, allowing the can body blanks to be uniform in size.
3. The single adjuster ensures the right angle both vertically and horizontally.
4. Our duplex slitter is simply designed and is easy to maintain or replace.
5. The oil pressure wheel cutter holder and the tungsten steel blade can be installed, but are not required.
6. The duplex slitter is equipped with Mitsubishi electrical control components and Yuken hydraulic components, offering high accuracy and stability, easy operation and easy adjustment.
