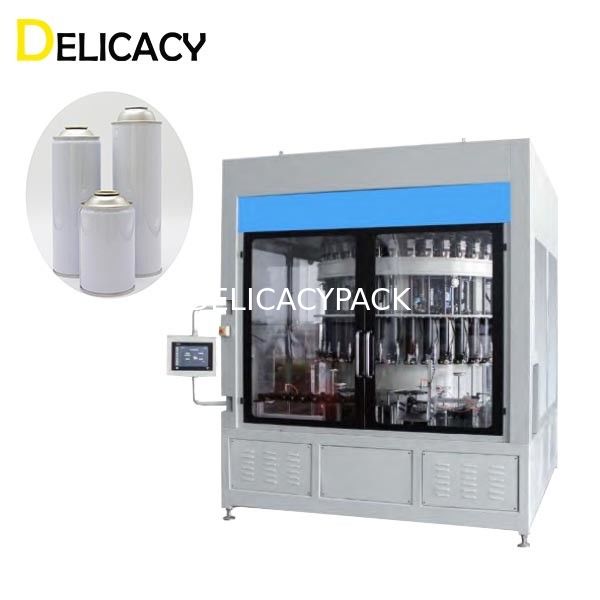

400CPM Automatic Can Leak Tester Machine For Aerosol Tin Can Making

400CPM Automatic Can Leak Tester Machine For Aerosol Tin Can Making

400CPM Can Leak Tester

Aerosol Can Leak Tester

Tin leak tester machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
3-phase 380V 50Hz
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Tin Can Making Machine
Product Name:
Can Sealing Combination Machine
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Box/ Customized
Delivery Time
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
Product Description

General Can Leak Tester For Aerosol Can Making Machine




Non-destructive testing

Imported European high precision transducer, more reliable

Equipped with temperature compensation system to improve accuracy

With more humanized interface for operation

With automatic height adjustment to make changeover more easy



Applicable can type Testing head Qty. Height range Diameter range Precision Max. speed Compressed air
Aerosol can 48 80-320 45-65 ≥2cc 8bar/Min 400CPM 3m³/Min 8-12bar
36 80-320 45-65 ≥2cc 8bar/Min 320CPM
24 80-320 45-65 ≥2cc 8bar/Min 220CPM
Powder can 20 110-245 99-153 0.03-0.05mm, 0.02Mpa 200CPM
15 110-245 99-153 150CPM


When the metal containers or plastic containers are completed by the can making line, the containers are come into leak inspecting machine, that is commonly named as can tester, pail tester or drum tester depending to the detected object. The leakage tester inspects and detects the containers by air, the containers can be fed as linear or rotary. For the general line cans or pails, the speed of can production line is not so high, it is better to use the in-line leak tester layout as linear, and for the aerosol cans or small space room, it is better to use the rotative can testing machine. The core technology of the leakage testing machine is not the mechanic, it is the leak detection software system. With many years’ experience in the leak testing machine industry, Delicacy develops a smart and sensitive software system to control the leak detecting machine and analyze the data collected by the system. When the sensors inspect the cans fed into the leak detector, the cans will be fixed on position, and the test head will press on the cans. The test head of leakage detector can be designed base on the format of top lid and hole of cans. It can cover the whole top can end, or only press on the hole of the top lids. Then the air will be filled into the containers. Because our can detecting machine is very sensitive and fast, just a few seconds to fill air and keep the air pressure stable, then the software system will high sensitively detect the air pressure decay or fluctuation, and use our leak detection algorithm to determine whether the cans is tight seal. Our can tightness tester not only detect the pressure decay, its artificial intelligence data analysis system can deal with the complex condition of air fluctuation. We have created data bank for a great variety of can size and shape to serve the metal packaging industry by our big data. If the can is detected by our leakage detecting machine, it will be automatically eliminated on the output of leak inspector. The quality assurance and tightness can be guaranteed by Delicacy can tester.
