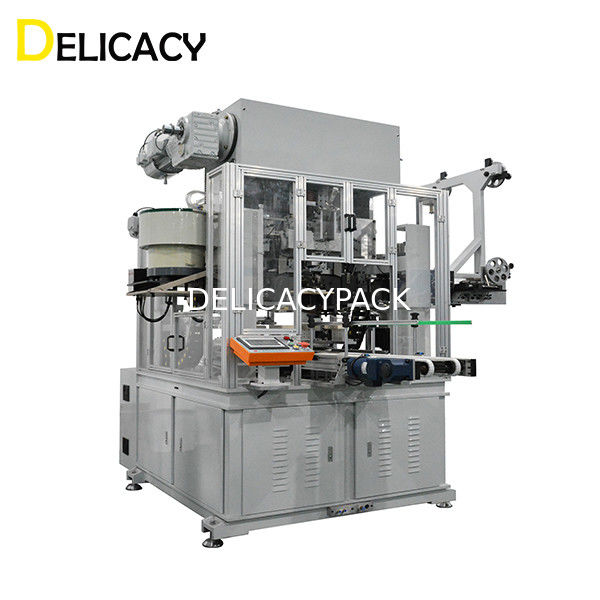

Full-auto Wire Handle Machine
Product Introduction
This economic wire handle machine is special made for customers, using cam transmission, cam conveying,which can reach 30cpm up.The forming of the wire handle is flat U shape hook & fold inside to make the wire handle not easy to come out and not pierce through pail body.Locating by sensor & mechanical combined, it makes the hook insert more precisely. It uses V-shape bearing to correct the wire from wire feeding rollers to forming, making the changeover of wire more convenient. This machine can be perfectly connected with the automatic production line for pails, to make it more efficient & safe.
Main Technical Parameters
Output:30CPM
Production range:Φ220mm-Φ300mm
Applicable height:280-500mm
Distance between beading and ears:≥20mm
Distance between top end and ears:35+(L-180)~65+(L-180)mm
Wire diameter:3.5-4.0mm
Whole power:15KW
Applicable air pressure:≥0.6Mpa
Connecting height:1000±20mm
Weight:App.4T
Dimension(LXWXH):2720x2940x2720mm
The combined machine consists of
1 Welding system
The spot welding machine is used to weld the lugs on the both side of conical pails or paint cans, so the machine is also name ear welding machine or lug welding machine.
2 Hopper
The hopper is also named as vibrator, it is a funnel shape device to fill with welding lugs or ears and arrange it in sequence, then feed the lugs one by one onto the paint can body or conical pail body.
3 Wire decoiler
The wire decoiling machine is to load the coil of metal wire, and decoil it to feed the wire placing system
4 Bail placing system
For the paint cans or conical pails, they are attached two lug components and placed with bail, so the can or pail can be equipped with wire handle. The bail placing machine can bend the wire to form as handle shape, insert the plastic grip onto the wire, and bend the hook on both side of wire handle, then attach the wire handle onto the container body automatically.
5 Spray coating system
The inside welding position of lugs can be coated by the spot coating system, the coating layer can protect the inside welding spot well.
How does the ear handle combination machine work?
1 Preparation of lugs, wire and grips
The welded lugs, formed wire and inserted grips are put on the hopper and decoiler first, preparing for the feeding.
2 Positioning
The paint can or conical pail are fed and detected for positioning the welding seam, so the position of welding spot can keep consistence.
3 Spot welding
The conical pail or paint can are welded with two piece of lugs at the same time, then conveyed to the next station.
4 Handle forming and attaching
After the ear welding, the metal wire is formed and attached onto the container body.
5 Spot coating
After the spot welding and handle mounting, the spray nozzle will coat a layer on the welding point by spraying.
