Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-151

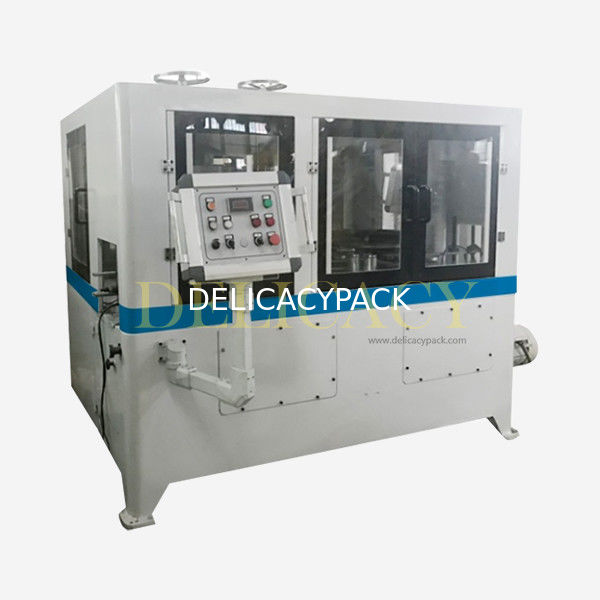

Tin Can Making Machine : General Can Combination Machine For Flanging/Beading/Sealing
Flanging beading sealing combination machine
Full-auto control with multi-safety features
Vertical feeding design for easier connection
Stepless speed adjustment
No-can, no-end protection system
Easy operation and tooling changeover
This machine is vertical design, suitable for high speed Drink and food can production, the combination machine can be with 3 station or 4 stations for necking/flanging/Beading/Seaming.
It is controlled by Mitsubish PLC control system and protected intelligent system to ensure safety & convert to low speed running or turn to standby when no can fed-in or can-stuck during production.
The main motor has stepless frequency variator to make speed adjustable. Change-over of this machine is easy to be operated.
| Function | Diameter range(mm) | Height range(mm) | Max speed(CPM) |
| Food & beverage cans | |||
| Necking | 52-99 | 50-160 | 620 |
| Flanging | 52-99 | 50-160 | 620 |
| Beading | 52-99 | 50-124 | 620 |
| Seaming | 52-99 | 50-160 | 620 |
| Formula Milk powder cans | |||
| Necking | 99-153 | 110-245 | 200 |
| Flanging | 99-153 | 110-245 | 180 |
| Beading | 99-153 | 110-245 | 200 |
| Seaming | 99-153 | 110-245 | 200 |
| Remarks: Combination machine type is decided by customer’s can type. | |||
WHY TO CHOOSE DELICACY PRODUCTS?
1. Established 20 years ago, Delicacy technology is a well-known brand in the Chinese industry.
2. Delicacy technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
3. Once choosing Delicacy technology products, Delicacy technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
