Name: 3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line
Brand: Delicacy packaging machinery co., ltd.
SKU: DP-112
Availability: InStock

Home > products > Tin Can Making Machine >

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line

Tin Can Induction Drying Oven

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

Model Number:

DP-112

Request A Quote

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line

Product Details

Color:

Customized

Automatic:

Yes

Certification:

Voltage:

3-phase 380V 50Hz

Condition:

New

Warranty:

1 Year

Burner Power:

1-2KW

Burner Heating Speed:

4m-7m/min

Suitable Small Can Diameter:

φ45mm-φ176mm

Suitable Big Can Diameter:

φ176mm-φ350mm

Can Height:

45mm-600mm

Cooling Water:

＞0.4MPa,12-20℃，40L/min

Air Consumption:

≥50L/min＞0.5Mpa

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support

Type:

Can Making Production Line

Product Name:

Induction Oven

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden Box/ Customized

Delivery Time

30-90

Payment Terms

T/T, L/C, Western Union, MoneyGram

Supply Ability

15SETS/Month

10-20L Steel Chemical Barrel Paint Pail Round Engine Oil Tin Tinplate Can Making Production Line Wire Handle Machine

Get Best Price

Automatic 10-20L Paint Chemical Pail Making Machine Steel Barrel Production Line Multi-Function Combiner

Get Best Price

Customized Superb Automatic Feed-In Metal Tin Can Body Making Circle Knife Gang Slitting Machine for Chemical Tin Can

Get Best Price

Fast Burner Heating Speed 4m-7m/min Induction Drying Oven for Milk Powder Can Production

Get Best Price

Contact Now

Product Description

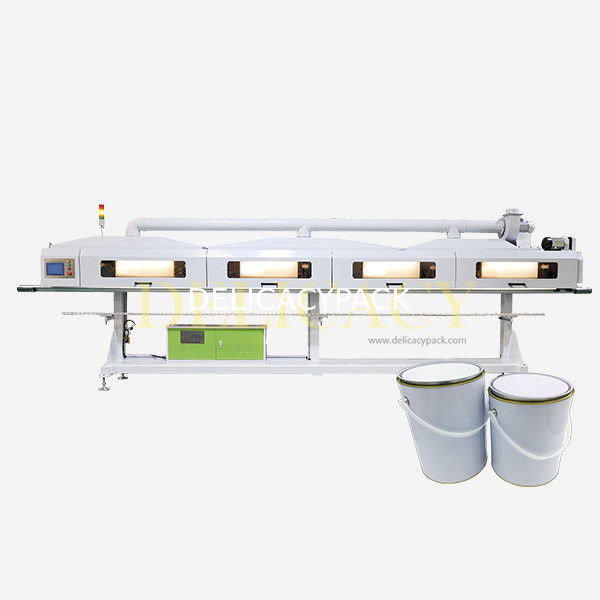

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line

After repeated testing, research and transformation, the main feature of this machineis energy saving. Each burner needs only 1-2KW, easy to operate.

It uses Japanese Omron color touch control terminal (touch screen), Japanese OmronPLC programmable controller, Japanese Omron intermediate relay; French Schneiderinverter, French Schneider contactor and so on.

The transmission supporter adopts a special custom-made heavy-duty aluminumalloy; it is also equipped with an imported wear-resistant belt with no seam beltthe aluminum alloy and the imported belt contact surface is attached with awear-resistant strip of 1mm to reduces friction to improves durabilityThe conveying adopts the lower conveying type, which is easy to operate and ensuresthat the distance between the weld and the furnace head is unchanged. lt only heatsthe repair area and does not generate heat around the periphery. Each burner can beset intelligently and heated individually or continuously.

-Stepless speed regulation

-Adjustable in conveying speed

-Applicable for different sizes of can bodies

-Only need to change height of conveyor for changeover of can sizes.

Burner power	1-2KW
Burner heating speed	4m-7m/min
Suitable small can diameter	φ45mm-φ176mm
Suitable big can diameter	φ176mm-φ350mm
Can height	45mm-600mm
Cooling water	＞0.4MPa,12-20℃,40L/min
Air consumption	≥50L/min＞0.5Mpa

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line 0 Conveyed by Single belts(sutomatic lifting) Range of can diameter :Φ45mm-Φ180mm

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line 1 Conveyed by updraft double belts Range of can diameter :Φ200mm-Φ350mm

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line 2 Conveyed by lower double belts(sutomatic lifting) Range of can diameter :Φ153mm-Φ300mm

3-Piece Tin Can Induction Drying Oven For Can Body Making Machine Line 3 Welding seam downwards,conveyed by double belts
