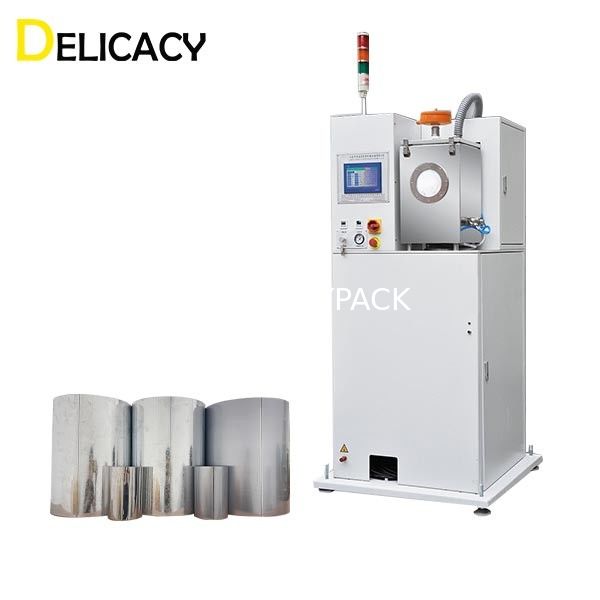

Electrostatic Powder Coating Metal Can Making Machine For Weld Seam Repair Protection

Electrostatic Powder Coating Metal Can Making Machine For Weld Seam Repair Protection

Powder Coating Metal Can Making Machine

Electrostatic Metal Can Making Machine

Weld Seam Metal Can Making Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
3-phase 380V 50Hz
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Beverage Can Prodution Lines
Product Name:
Inside Side Stripe Power Coating Machine
Applicable Can Diameter:
Transfer Speed:
Coating Width:
Power Material:
Polyester Epoxies
Installed Power:
Air Connsumption:
≥300L/min >0.5Mpa
Input Power:
AC 220V, 50HZ
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Box/ Customized
Delivery Time
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
Product Description
Weld Seam Repair Protection Steel Metal Can Making Production Line Welder Electrostatic Powder Coating Machine System
Our powder coating machine adopts many foreign advanced technologies, the system has charactelof high reliability, easy operation, wide applicability, and high cost performance. lt also uses manyimported control components.
It comes with Japanese Omron color touch control terminal (touch screen), Japanese Omron PLC programmable controller,Japanese Omron intermediate relay, French Schneider inverter, Germany Siemens Air switch, and use Japanese SMC brand for pneumatic components.
The electrostatic controller uses high-end customized imported electronic components andintegration.
The main powder spraying pail, recycling pail, and recycling filter pail are all made of 304 bright platestainless steel with advanced technology and high precision, each pail is bright, and all parts whichwill pass through the powder are used 304 stainless steel to avoid powder pollution.
-Steady and even powder application
-Clean and clear side stripe
-No powder dropping and splashing
-No environment pollution
Applicable can diameter Ф52mm-Ф350mm
Transfer speed 10-20m/min/20-60/min
Coating width 6-14mm
Power material Polyester Epoxies
Installed power 2.5KW
Air connsumption ≥300L/min >0.5Mpa
Input power AC 220V, 50HZ
Weight 500Kg
Dimension 900*900*2200mm




1. Q: Are you manufacturer or trading company?

A: We are original manufacturer for 20 years long and have our own research and development team.


2. Q: How can you guarantee quality?
A: 1. With decades of accumulated experience, we own proven technique, professional engineer, skilled staff and strict quality controlling system.
2. We adopts international branded electrical, pneumatic components, such as: Siemens, Panasonic, Schneider, Omoron,etc.
3. Our products acquires multinomial patents and safe certificates.


3. Q: What’s about delivery time, terms of payment and delivery?
A: Generally, products will be delivered 60-90 working days upon receipt of down payment by preferable Bank T/T.

It can be negotiated.


The powder coating system consists of

1 Inside powder coating arm of welded seam strip spraying powder coating machine
The coating arm conveys and atomizes powder, corona discharge needle of internal high voltage module charges the powder, so that
the powder is evenly absorbed in the welding seam of cans.
2 Powder supply unit of welded side seam powder coating machine
The powder level is equipped with a capacitive sensor. When the powder level is insufficient, the large powder pump will be started to
deliver the powder from the filter bucket to the material tank.
3 Cyclone filter of welded seam powder coater
The cyclone filter adopts an advanced intermittent rotating cleaning mechanism, which can ensure obvious cleaning effect, which is
much better than conventional cleaning in any form, and has low noise and small air pressure fluctuations.
4 Powder tank of side seam powder coating system
The powder tank is a stainless steel powder container with a fluidized bed for adding new powder. All powder for each shift is added
to the bucket, reducing the frequent addition of powder by the operator.

We produce two types of welded seam strip spraying powder coating systems, combined powder spraying machine and divided
powder spraying machine.

The powder spraying system for welded side seam can be used for food cans and conical pails.
Customize your side stripe powder coating system
1 Inside diameter of your tin cans or conical pails
2 Height of your cans or pails
3 Production speed of your can making production line
