Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-250
Product Feature

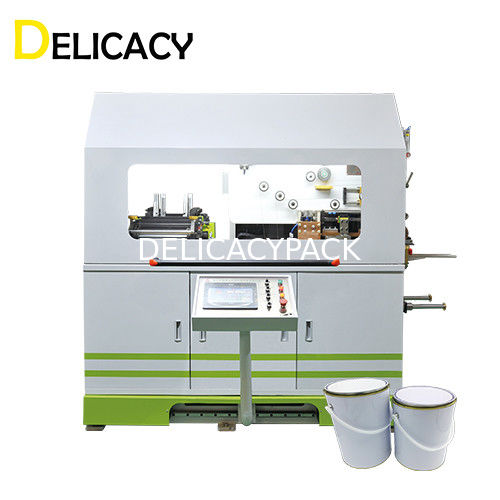

We start our company by manufacturing welding machine, until now we have 20 years experience on welding machine.
The machines adopts Japan Omron and French Schneider electrical control, equipped with SMC pneumatic parts.
The material of roller is imported from GERMANY, so it ensures high precision between each part, minimum reject rate, smooth production.
| Welding Frequency | 150-400Hz |
| Welding speed | 20m-40m/min |
| Production capacity | 350pcs/min |
| Can body diameter | φ65(φ52)mm-φ176mm |
| Can height | 70mm-260mm.(320mm) |
| Adapt to tinplate thickness | 0.16mm-0.3mm |
| Copper wire diameter | φ1.26mm-φ1.38mm |
| Weld seam amount | 0.3mm-0.6mm |
| Power supply | 380V 50Hz |
| Installed power | 35kw |
| Cooling water | ＞0.4Mpa,12-20℃,60L/min |
| Air consumption | ≥600L/min＞0.5Mpa |
| Device Weight | About 3000Kg |
| Dimensions | 2000mm*1600mm*2000mm |
Why Choose Us?
1) Profession
We are a professional manufacturer and well experienced in making tin cans
2) High quality product.
3) Good service.
We provide timely and effective communications with clients, keep following buyers’ orders and give feedback in time. And, sound after-sales service is provided.
4) Competitive price.
We are ready to develop long-term and good relationship with overseas customers.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
Warm welcome friends from all over the world to visit and instruct us!
