380 Volt 50HZ Metal Can Making Machine For Inside Outside Spray Conveying

380 Volt 50HZ Metal Can Making Machine For Inside Outside Spray Conveying

380Volt Metal Can Making Machine

Spray Conveying Metal Can Making Machine

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

CE

Model Number:

DP-101

Contact Us
Request A Quote
Product Details
Color:
Customized
Automatic:
Yes
Certification:
CE
Voltage:
3-phase 380V 50Hz
Condition:
New
Warranty:
1 Year
Applicable Can Diamet:
φ52mm-φ350mm
Applicable Can Height:
50mm-600mm
Coating Speed:
8-16m/min/25-50m/min
Outside Coating Width:
8-18mm
Compressed Airm:
0.4MPA/CM²
Input Power:
380V/50HZ
Dimension(LxWxH):
1800mmX600mmX1300mm
Weight:
About 500Kg
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type:
Paint Can Production Line
Product Name:
Induction Oven
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden Box/ Customized
Delivery Time
30
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
15SETS/Month
Product Description

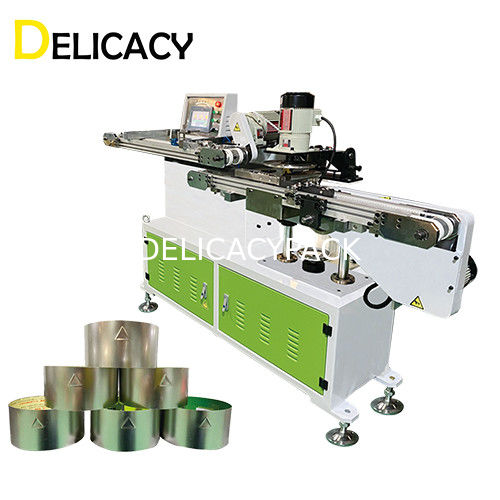

Inside&Outside External Spray Conveying Machine For Tin Can Manufacturing Machine


For protection of welding seam of can bodies after welding.
Suspension type belt conveying, stable conveying for can bodies, no scratch on can bodies.
Compact structure, bi-directional adjustment for belt width, suitable for conveying various can sizes.



Introduction and configuration:

The machine adopts Japan Omron PLC programmable controller, color touch control terminal (touch screen) and pneumatic components all adopt Taiwan Yadeke brand.

The transfer bracket is made of special custom heavy duty aluminum alloy.

The conveyor belt uses a seamless belt wire timing belt for durability and smoothness.

The external sprayer adopts spray coating and roller coating, both of which are available for users to choose.





PARAMETTRE
适用罐径 Applicable can diameter: Φ52-Φ176mm
适用罐高 Applicable can height: 50-400mm
补涂速度 oating speed:

10-20m/min/

20-25m/min

外补涂宽度 Coating width: 10-20m/min
压缩空气 Coating air: 0.4Mpa/cm2
设备功率 Power: 50/60Hz P=400W
电源电压 Input power: UVW 380V, 50/60HZ
外形尺寸 Dimension: 2250×550×1300mm
整机重量 Weight: 680Kg



Features:
Perfect weld seam protection
Clean and low lacquer consumption
Higher seam-coverage quality thanks to more precise coverage limitation
Homogenous distribution of liquid lacquer
Good coverage in the seam overlap area
Adjustable liquid lacquer quantity
Lacquer reservoir is available to supply lacquer automatically
Inverted bottle system is available
Compact and user-friendly
Suspension type belt conveying, stable conveying for can body, no scratch on can body
Bi-directional adjustment for the width of conveying belt, suitable for a variety of can sizes
