Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-100
| Applicable can diamet | φ52mm-φ350mm |
| Applicable can height | 50mm-600mm |
| Coating speed | 8-16m/min/25-50m/min |
| Outside coating width | 8-18mm |
| Compressed airm | 0.4MPA/CM² |
| Input power | 380V/50HZ |
| Dimension(LxWxH) | 1800mmX600mmX1300mm |
| Weight | About 500Kg |

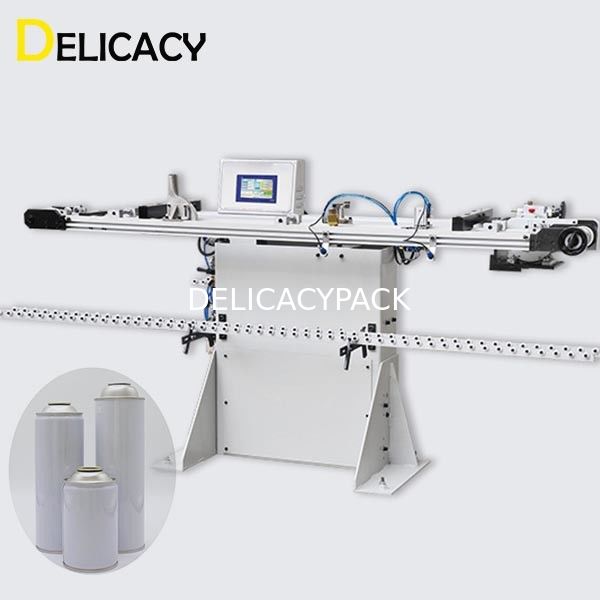

Our self-produced lacquer spray system is using Nordson spray nozzle , Chinese brand Spray gun, Chinese brand air tank etc. to be the main parts for spraying the lacquer onto welding seam.
This system is using suspending conveying mechanism to meet the technology demands for installing various internal & external side stripe coating system. Speed of this system is variated according to the weling line.
And it has two synchronous belts for stable conveying to avoid belt slipping , and to ensure good coating quality.
Features:
Perfect weld seam protection
Clean and low lacquer consumption
Higher seam-coverage quality thanks to more precise coverage limitation
Homogenous distribution of liquid lacquer
Good coverage in the seam overlap area
Adjustable liquid lacquer quantity
Lacquer reservoir is available to supply lacquer automatically
Inverted bottle system is available
Compact and user-friendly
Suspension type belt conveying, stable conveying for can body, no scratch on can body
Bi-directional adjustment for the width of conveying belt, suitable for a variety of can sizes
Why Choose Us?
1) Profession
We are a professional manufacturer and well experienced in making tin cans
2) High quality product.
3) Good service.
We provide timely and effective communications with clients, keep following buyers’ orders and give feedback in time. And, sound after-sales service is provided.
4) Competitive price.
Send your inquiry directly to us
