Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-009

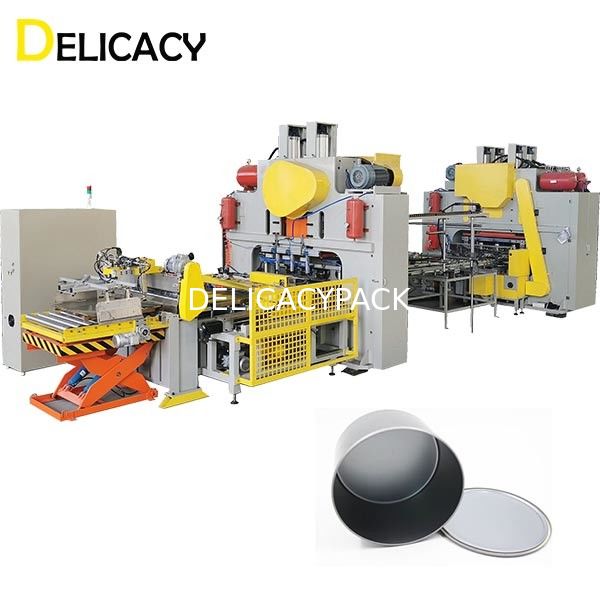

Metal Tinplate Food Cans Making Two Piece Can Production Line Can Making Machine DRD
Features:
- Fully automated
- Capacity up to 300CPM
- Double sheet detection, overload and double punch detection
- Applicable for various plates
- Applicable for various can sizes
- Reliable control system with integrated HMI and PLC
| Model | DPGT2A4-120-T (Punching & 1st drawing) | DPGT2A4-100 (2nd drawing) | DPGT2A4-60-T (Trimming) |
| Norminal force | 120T | 100T | 60T |
| Max. stroke | 120 | 110 | 120 |
| Max. die loading | 3 | 3 | 3 |
| Max. sheet size | 1100*1100 | 1100*1100 | 1100*1100 |
| Max. sheet thickness | 0.4mm | 0.4mm | 0.4mm |
| Total power | 25kw | 35kw | 13kw |
| Dimension | 14000*1500*2800 | 14000*1500*2800 | 14000*1500*2800 |
| Weight | 14.5T | 16T | 8.5T |
WHY TO CHOOSE DELICACY PRODUCTS?
1. Established 20 years ago, Delicacy technology is a well-known brand in the Chinese industry.
2. Delicacy technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
4. Once choosing Delicacy technology products, Delicay technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
1. Warranty: One year after shipment.
2. Delivery Time: 30-60 working days after receiving the advanced payment.
3.Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)
4. Installation and commissioning
Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and air into the machines, then we shall send 1-2 technicians to install the production line.
Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.
As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.
We manufacturer and export the following series of products:
► Easy Open End Production Lines
► 2-Piece DRD Can Production Lines
► Metal Caps & Closures Production Lines
► Metal Ends Production Lines
► Aerosol Cone & Dome Production Lines
► Fancy Tins Making Machines
► Metal Cans & Pails Making Machines
► 3-Piece Tin Can Making Machines
We are ready to develop long-term and good relationship with overseas customers.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
Warm welcome friends from all over the world to visit and instruct us!
