Semi-Auto Body Welder

Semi-Auto Body Welder

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

CE

Model Number:

DP-103

Contact Us
Request A Quote
Product Details
Color:
Customized
Automatic:
Yes
Certification:
CE
Condition:
New
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type:
Tin Can Making Machine
Product Name:
Semi-Auto Body Welder
Power Supply:
380V 50Hz
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden Box/ Customized
Delivery Time
3-7
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
15SETS/Month
Product Description

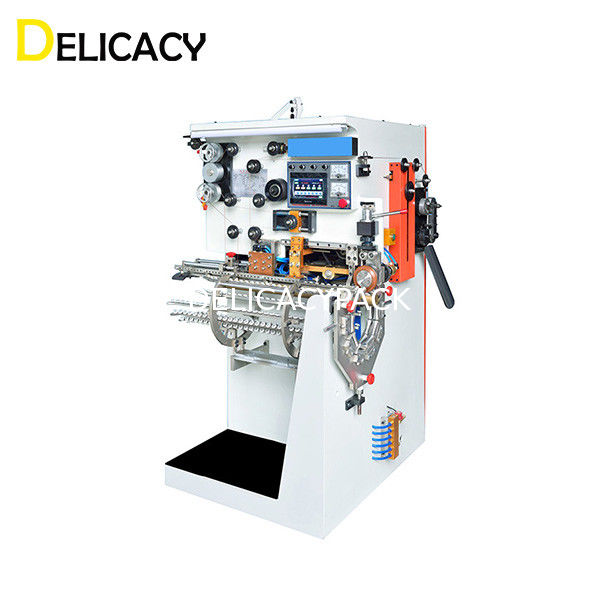

Semi-Auto Body Welder



Performance and Configuration

This machine is suitable for the production of metal can body, including automatic rolling and welding as mechatronics.

1. Touch panel, simple man-machine interface, automatic fault
detection, automatic alarm and troubleshooting system, enable the safe
operation of equipment, touch operation on panel for related
adjustment.

2. Equipped with Omron, Mitsubishi, Schneider, SMC, AirTAC etc.
high-quality electrical components.

3. Electronic static adjustable variable-frequency power inverter,
water-cooled welding transformer, adjustable in welding current
strength, and frequency continuity.

4. Additional double profiling unit for copper wire, enable the copper
wire convey smoother on the lower welding roller, with more uniform
welding seam.

5. Equipped with Taiwan brand reducer, the domestic mainstream
motor as drive system, to enhance the durability of machine.

6. Can run with the inside/outside coating machine and curing system
as production line.


Main Parameters:

Type: DP-30D
Welding Speed: 6-18m/min (max)
Production Speed: 20-30cans/min
Spot Distance: 0.5 ~ 0.85mm
Overlap: 0.6mm-1.2mm
Sheet thickness: 0.16~0.7mm

Body Diameter: 52-300mm

Body Height: 70-500mm
Can Material: tin plate Ni-plate steel-based plate (Max. thickness 0.7mm)
Hardness: T2 - DR8
Copper Wire Diameter: 1.38~1.5mm
Installed Capacity:36KVA
Welding Frequency:80-280HZ
Power Source:380V±5% 50Hz
Cooling Water >20L/min >400Kpa/cm² <20℃
Dimensions:1300x1100x1800mm
Weights:1200Kg


Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.

As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.



We manufacturer and export the following series of products:

► Easy Open End Production Lines

► 2-Piece DRD Can Production Lines

► Metal Caps & Closures Production Lines

► Metal Ends Production Lines

► Aerosol Cone & Dome Production Lines

► Fancy Tins Making Machines

► Metal Cans & Pails Making Machines

► 3-Piece Tin Can Making Machines



We are ready to develop long-term and good relationship with overseas customers.

We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.

Warm welcome friends from all over the world to visit and instruct us!
