Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-106

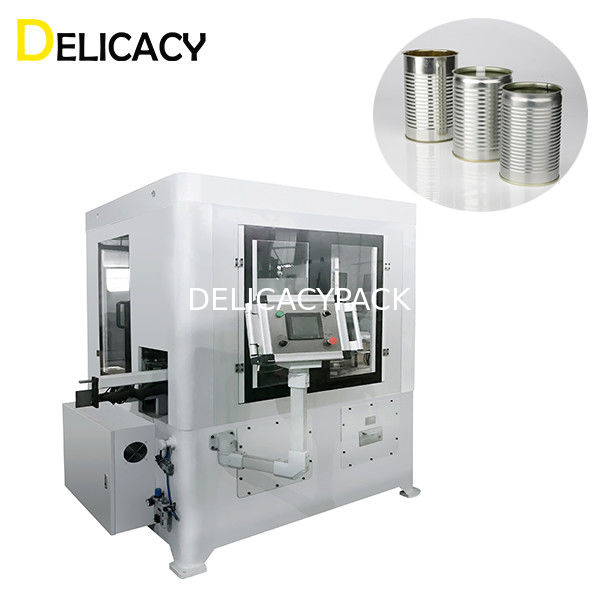

Combination Tin Can Making Machine Production Line 550CPM For 73mm Can
Flanging beading sealing combination machine
Full-auto control with multi-safety features
Vertical feeding design for easier connection
Stepless speed adjustment
No-can, no-end protection system
Easy operation and tooling changeover
This machine is vertical design, suitable for high speed Drink and food can production, the combination machine can be with 3 station or 4 stations for necking/flanging/Beading/Seaming.
It is controlled by Mitsubish PLC control system and protected intelligent system to ensure safety & convert to low speed running or turn to standby when no can fed-in or can-stuck during production.
The main motor has stepless frequency variator to make speed adjustable. Change-over of this machine is easy to be operated.
| Function | Diameter range(mm) | Height range(mm) | Max speed(CPM) |
| Food & beverage cans | |||
| Necking | 52-99 | 50-160 | 620 |
| Flanging | 52-99 | 50-160 | 620 |
| Beading | 52-99 | 50-124 | 620 |
| Seaming | 52-99 | 50-160 | 620 |
| Formula Milk powder cans | |||
| Necking | 99-153 | 110-245 | 200 |
| Flanging | 99-153 | 110-245 | 180 |
| Beading | 99-153 | 110-245 | 200 |
| Seaming | 99-153 | 110-245 | 200 |
| Remarks: Combination machine type is decided by customer’s can type. | |||
1. Warranty: One year after shipment.
2. Delivery Time: 15-30 working days after receiving the advanced payment.
3. Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)
4. Installation and commissioning
Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and air into the machines, then we shall send 1-2 technicians to install the production line.
