415V High Accuracy Metal Lid Production Line Sheet Feeding Press Machine

415V High Accuracy Metal Lid Production Line Sheet Feeding Press Machine

High Accuracy Metal Lid Production Line

415V Metal Lid Production Line

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

CE

Model Number:

DP-009

Contact Us
Request A Quote
Product Details
Color:
Customized
Automatic:
Yes
Certification:
CE
Power(w):
35KW
Condition:
New
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Voltage:
380V/50HZ,380V,Customized,220V/380V,3phase 380V/220V/415V 50HZ
Type:
Tin Can Production Line
Product Name:
Tinplate Sheet Feeding Machine
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden Box/ Customized
Delivery Time
30
Supply Ability
15SETS/Month
Product Description

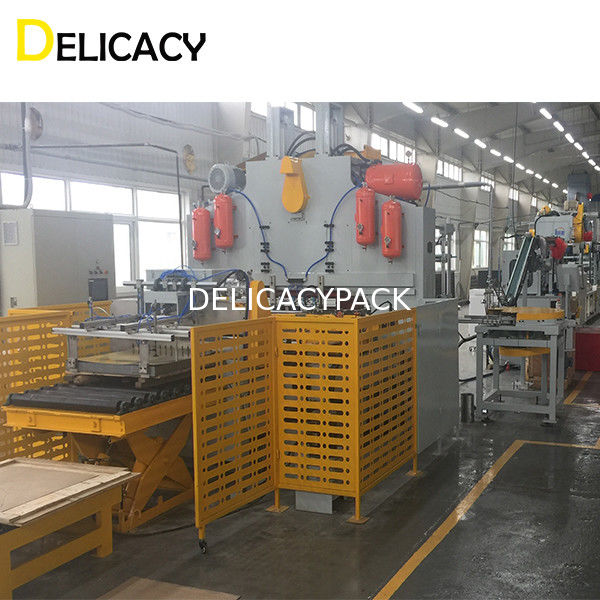

Metal Lid Production Line Sheet Feeding Press Machine





1. Sheet feed press for metal lids making line

The CNC sheet feed press is more productivity with high accuracy. We provide different tonnage of H-type press with availability of 1-7 heads of mold setting to meet different capacity requirement.
The sheet feeding system is full automatic with robot feeding system. There will be 4 idle punching, 2 idle punching and 0 idle punching as optional for different configuration.


A sheet feed press is a machine used in a metal lids making line to process and form metal sheets into lids. Here are the main features of this equipment:

  1. Sheet Feeding System: The press is equipped with a reliable sheet feeding system that allows for the smooth and accurate feeding of metal sheets. This ensures consistent and precise production of metal lids.

  2. Pressing and Forming: The machine applies pressure to the metal sheets to shape them into lids. It employs various pressing techniques and dies to achieve the desired lid shape, including embossing, cutting, and forming.

  3. High Precision and Efficiency: The sheet feed press is designed to deliver high precision and efficiency in the production process. It ensures uniform lid dimensions, tight tolerances, and minimal material waste, resulting in high-quality lids and optimized production output.

  4. Adjustable Parameters: The press offers adjustable parameters such as pressure, speed, and stroke length, allowing operators to optimize the forming process for different lid sizes and materials. This flexibility enables customization and versatility in lid production.

  5. Safety Features: The machine is equipped with safety mechanisms to protect operators and prevent accidents. These features may include emergency stop buttons, safety guards, and sensors to detect abnormalities or malfunctions.

  6. Integration with Production Line: The sheet feed press is designed to seamlessly integrate into a metal lids making line. It can be connected to other equipment, such as roll forming machines, trimming stations, or lid packaging systems, to create a complete and efficient production workflow.



2. Product Paramenters

Model
DPGT2A4-120
DPGT2A4-120-H
DPGT2A4-60
DPGT2A4-40
Normal Force
120T
120T
60T
40T
Max stroke times
200
240
200
200
Max die installed
7
7
3
1
Max sheet size
1050*1050
1050*1050
1050*1050
1050*1050
Max sheet thickness
0.4mm
0.4mm
0.4mm
0.4mm
Total Power
25kw
25kw
20kw
16kw
Installation size
3400*1500*2800
3400*1500*2800
2700*1300*2700
2700*1300*2500
Total weight
14T
14T
10.8T
8T



3 .WHY TO CHOOSE DELICACY PRODUCTS?​



1. Established 20 years ago, Delicacy technology is a well-known brand in the Chinese industry.
2. More than 80% of customers in China have used Delicacy products.
3. Delicacy technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
4. Once choosing Delicacy technology products,  Delicay technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
