Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-84

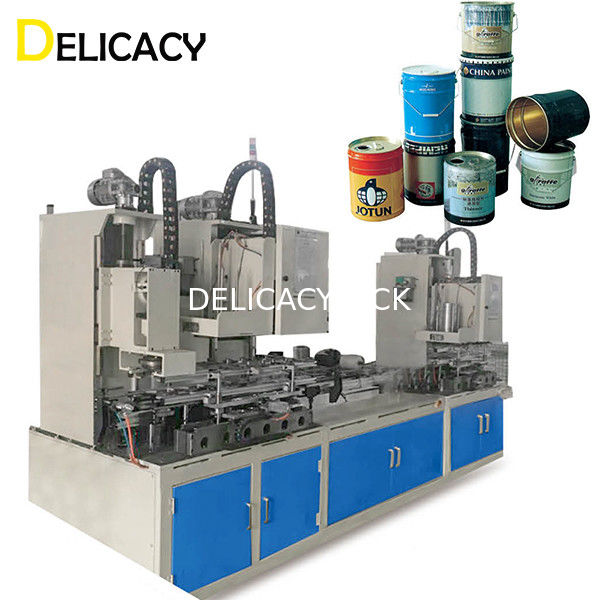

Automatic 30-40cpm 18-25L Liter UN Standard Tin Paint Jerry 3-Piece 3 Three Piece Can Production Line Pail Making Machine
Used for body production of small square cans, such as 1L-5L and so on. The line realizes fully automatic production and the output reaches 30CPM for mass production for square cans.
Equipment features
The line adopts purely mechanial cam transmission,cam conveying can ,cam holdind can.It runs smoothly and safely because of continuously adjustable speed and protection device of can jam. The internal and external grooved pulley design mades sure the flangingis uniform and fast, so that to ensure good seaming quality.
Main Technical Parameters
Size of machine: 2700X1700X2600mm
Auto sealing : 2000X1850X2350mm
Voltage: 380V
Production speed: 30cans/min
Dimension of whloe line: L12.5m
Power of whole line: 30KW
