Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-84
Metal Round Chemical Paint Engine Oil Tin Barrel Lugs Lifting Hand Earlug Welding Welder Pail Can Making Machine

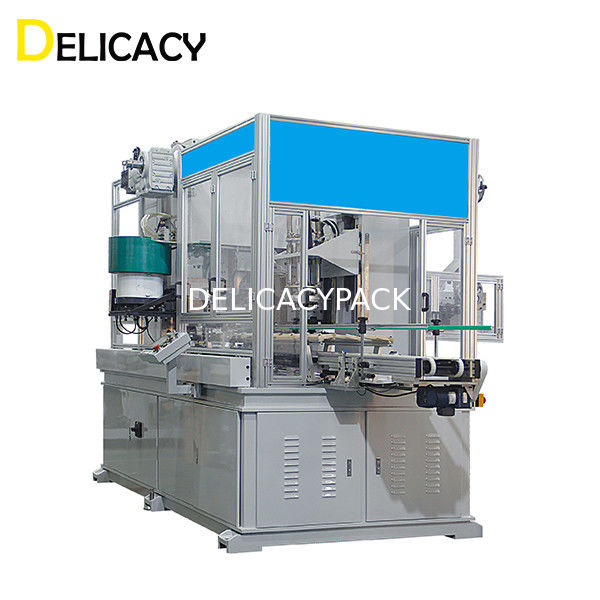

Full-auto Wire Handle Machine
Product Introduction
This machine can reach 40cpm up. Using mechanical cam transmission, cam conveying, with advanced control system, it makes the machine run flexibly & reduce mechanical impact. The forming of the wire handle is flat U shape hook & fold inside to make the wire handle not easy to come out and not pierce through pail body.
Locating by sensor & mechanical combined, it makes the hook insert more precisely. It uses V-shape bearing to correct the wire from wire feeding rollers to forming,making the changeover of wire more convenient. It has the break-point memory function, no need to take out the pails after troubleshooting, which can save time &labor. and make it more stable & firmed. This machine can be perfectly connected with the automatic production line for pails, to make it more efficient & safe.
Main Technical Parameters
Output:40CPM
Production range:Φ220mm-Φ300mm
Applicable height:280-500mm
Distance between beading and ears:≥20mm
Distance between top end and ears:35+(L-180)~65+(L-180)mm
Wire diameter:3.5-4.0mm
Whole power:15KW
Applicable air pressure:≥0.6Mpa
Connecting height:1000±20mm
Weight:App.5T
Dimension(LXWXH):4520x2820x2860mm
Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.
As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.
We manufacturer and export the following series of products:
► Easy Open End Production Lines
► 2-Piece DRD Can Production Lines
► Metal Caps & Closures Production Lines
► Metal Ends Production Lines
► Aerosol Cone & Dome Production Lines
► Fancy Tins Making Machines
► Metal Cans & Pails Making Machines
► 3-Piece Tin Can Making Machines
We are ready to develop long-term and good relationship with overseas customers.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
Warm welcome friends from all over the world to visit and instruct us!
