10-20L Steel Chemical Barrel Paint Pail Round Engine Oil Tin Tinplate Can Making Production Line Wire Handle Machine

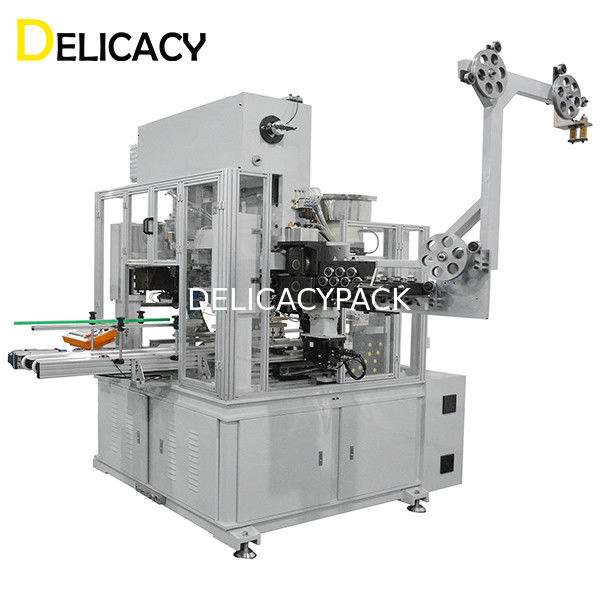

Full-auto Wire Handle Machine
Product Introduction
This economic machine is developed by Delicacy according to the market requirement,combining ear welding & wire handle inserting,which can save some space.The whole machine uses mechanical cam conveying,coating penetration in ear welding position,making the welding spots even and not easy to break through. It also has the eliminating black smoke system to clear the black slags after ear welding. The forming of the wire handle is flat U shape hook & fold inside to make the wire handle not easy to come out and not pierce through pail body by squeezing. This machine can be added ear inside spray function,and be perfectly connected with the automatic production line for pails.
Main Technical Parameters
Output:35CPM
Whole power:85KW
Production range:Φ220-300mm(Customized according to customer sample)
Applicable air pressure:≥0.6Mpa
Applicable height:200-500mm
Transformer secondary current:APP.3000A
Tinplate's thickness of can body:0.32-0.4mm
Connecting height:1000mm±20mm
Tinplate's thickness of welding ears:≥0.32mm
Weight:APP.5.2T
Wire diameter:Φ3.5-4.0mm
Dimension(LXWXH):2780x28000x2700mm
Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.
As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.
