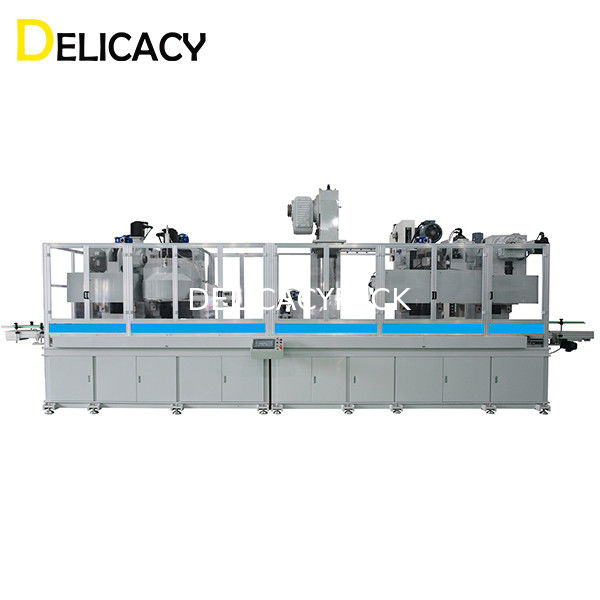

Metal Packaging Automatic UN Standard Steel Chemical Barrel Tinplate Metal Tin Pail Can Making Machine Production Line
Full-auto Wire Handle Machine
Production Process
Flanging by rollers & Bottom expanding, Bottom seaming, Turn over, Expanding, Pre-curling, Curling, Locating, Beading
Product Introduction
This line is particularly designed for UN curling. One curling operation is added based on the YTZD-T18A pail line, in order to strengthen the pail top. The whole line uses independent servo system for push-up can. Customers can add the absolute value servo motor, to make the adjustment of the line more convenient( Additional cost will be charged ). It also has the locating function for beading position, to avoid the scratch after can stacking. The whole line standardly configures with original Siemens Motion Control System&German SEW reducer. Using the independent electrical control cabinet with German Rittal cooling system,makes the electrical control system run more steadily.
Main Technical Parameters
Output:40CPM
Power of whole line:APP.55KW
Applicable can diameter:Φ260-290mm
Voltage:Three-phase four-line 380V(Can be configured according to different countries)
Applicable can height:250-480mm
Air pressure:Not lower than 0.6Mpa
Applicable tinplate thickness:0.28-0.48mm
Weight:APP.15.5T
Applicable tinpla tetemper:T2.5-T3
Dimension(LxWxH):6850mmx1950mmx3100mm
