High Precision Automatic Production Line For Candle Aluminum Caps

Automatic Production Line For Candle Aluminum Caps

An automatic production line for candle aluminum caps is a automated equipment system used for the manufacturing of candle aluminum caps. It is capable of completing the production process of candle aluminum caps without the need for manual intervention, thereby improving production efficiency and product quality. Here is a possible workflow for a candle aluminum cap automatic production line:

1. Material supply: Aluminum materials are supplied in the form of coils or sheets to the production line. These aluminum materials are pre-prepared and meet the production requirements.

2. Feeding system: An automatic feeding system delivers the aluminum materials to the starting position of the production line. It may include a coil rack and a coil unwinding device to unwind the aluminum material from the coil and feed it into the next process.

3. Stamping: In this step, an automatic stamping machine stamps the aluminum material into the predetermined shape and size. The stamping dies are designed according to the requirements to form the shape of the candle aluminum cap on the aluminum material.

The specific configuration and features of an automatic aluminum foil cap making line can vary depending on the manufacturer and production requirements. The line may include additional steps such as lubrication, inspection stations, and labeling, based on specific industry needs.

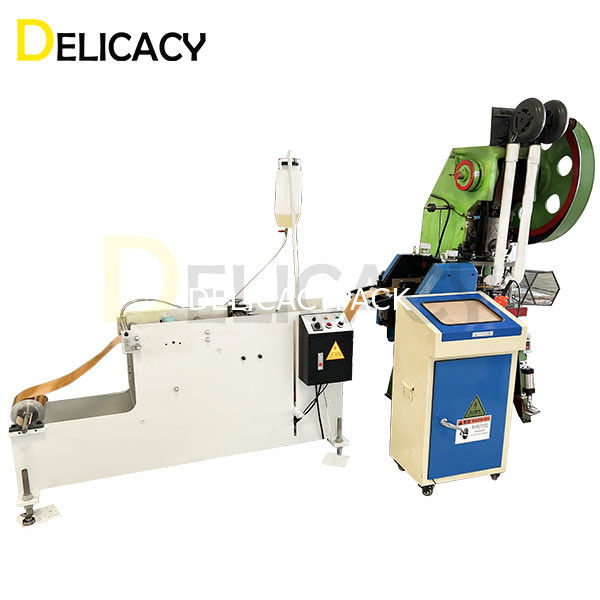

Automatic coil feeding system, customized 25T high-precision press machine and 2-cavity mold (with air blowing system and material outlet cage)

Speed: about 250 caps/min

Automatic aluminium cap production line (Φ38*H12mm).
Max. production speed: 240 caps/min.

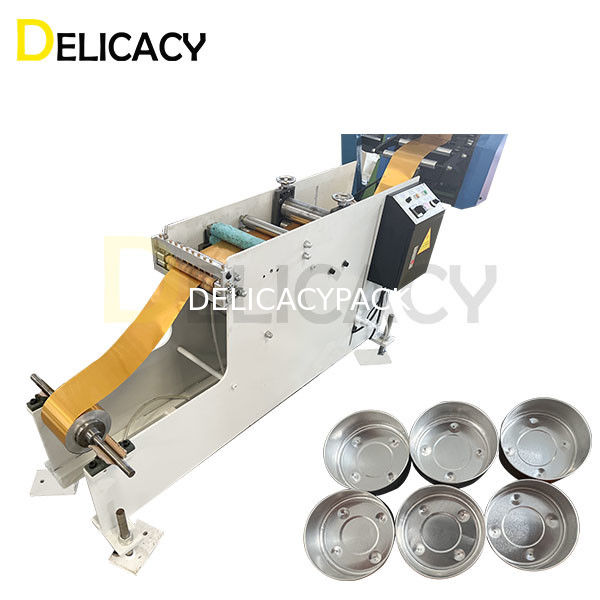

Automatic coil feeding system
Automatic coil feeder for feeding alumimium foil coils into press for
automatic blanking operation

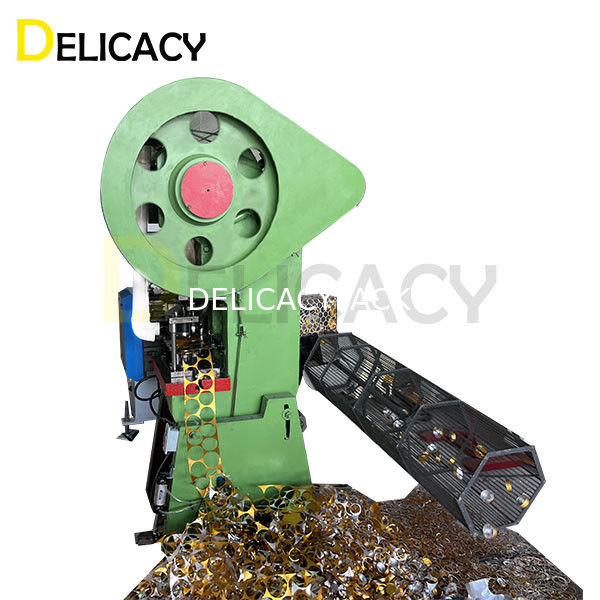

Press
Customized 25T high-precision power press
Nominal force: 25T
Slider stroke: 80mm
Stroke times: 120 times/min
Max. die height: 250mm
Die height adjustment: 50mm
Worktable dimension: 400*700mm
Main motor power: 3Kw

Toolings

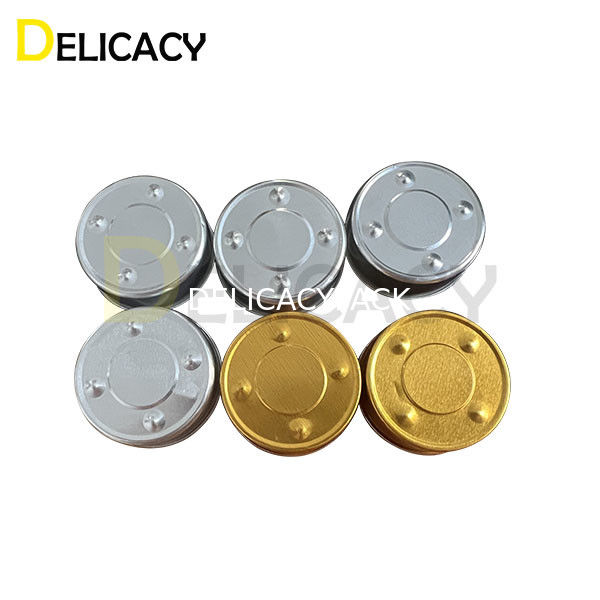

Double-cavity toolings for automatic production of D33H16mm
round aluminium foil cap blanking with outside curling operation
With automatic air blowing system and material outlet cage
