Resistance Welding Machine For Tin Can Making Machine 3 Phase 35KW

Resistance Welding Machine For Tin Can Making Machine 3 Phase 35KW

3 Phase Tin Can Welding Machine

35KW Tin Can Welding Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
380V/50HZ,380V,Customized,220V/380V,3phase 380V/220V/415V 50HZ
About 3000KG
Welder Machine
Product Name:
General Can Body Welder Machine
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Box/ Customized
Delivery Time
Supply Ability
Product Description

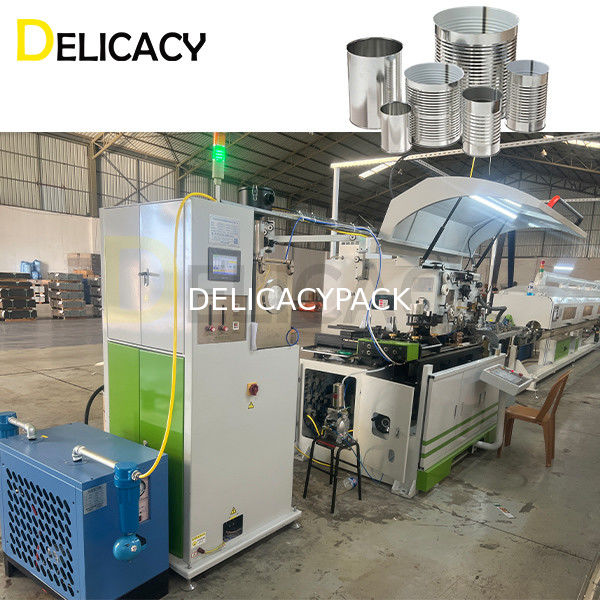

Resistance Welding Machine For Tin Can Making Machine
Can body welding machine for food / aerosol & paint can making

Resistance Welding Machine: This type of welding machine utilizes resistance welding to create a continuous weld along the length of the can body. It typically employs two rotating electrode wheels that apply pressure and electrical current for welding. This method is commonly used in the manufacturing of food cans and aerosol cans. Here are some further extensions:

  1. Welding Parameter Control: Resistance welding machines offer precise control over the welding process by adjusting parameters such as current, pressure, and welding time. This flexibility allows manufacturers to customize the welding for different can materials and sizes.

  2. Weld Seam Quality Monitoring: Resistance welding machines can be equipped with real-time monitoring and inspection systems to check the quality of the weld seam. By using sensors and corresponding algorithms, cracks, defects, or poor welds in the seam can be detected. This helps identify and rectify welding quality issues promptly, ensuring the sealing and strength of the cans.

  3. Machine Automation: Extended resistance welding machines can be equipped with automation systems to achieve full automation of the welding process. Automation features can include automatic loading and unloading of the cans, automatic adjustment of welding parameters to accommodate different can sizes, and automatic recording of production data. This enhances production efficiency and reduces human errors and operational costs.

  4. Multi-functional Applications: In addition to welding food cans and aerosol cans, resistance welding machines can also be applied to the manufacturing of other types of metal containers such as oil drums and chemical tanks. By appropriately adjusting the welding parameters and machine settings, the machines can meet the manufacturing requirements of different types of containers.

  5. Energy Efficiency and Environmental Friendliness: Resistance welding machines typically use instant heating for welding, resulting in lower energy consumption compared to traditional welding methods. This helps conserve energy and reduce environmental impact, aligning with the principles of sustainability.


-Suitable for production of general can bodies.
-HMI with automatic fault detection and troubleshooting system to enable safe operation.
-Equipped with high quality electric components like Mitsubishi, Omron, Schneider, SMC, AirTac, etc.
-Electronic static adjustable variable-frequency inverter, water-cooled welding transformer, adjustable welding current and frequency continuity.
Welding Frequency 150-400Hz
Welding speed 20m-40m/min
Production capacity 350pcs/min
Can body diameter φ65(φ52)mm-φ176mm
Can height 70mm-260mm.(320mm)
Adapt to tinplate thickness 0.16mm-0.3mm
Copper wire diameter φ1.26mm-φ1.38mm
Weld seam amount 0.3mm-0.6mm
Power supply 380V 50Hz
Installed power 35kw
Cooling water >0.4Mpa,12-20℃,60L/min
Air consumption ≥600L/min>0.5Mpa
Device Weight About 3000Kg
Dimensions 2000mm*1600mm*2000mm



Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.

As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.


We manufacturer and export the following series of products:


► Easy Open End Production Lines

► 2-Piece DRD Can Production Lines

► Metal Caps & Closures Production Lines

► Metal Ends Production Lines

► Aerosol Cone & Dome Production Lines

► Fancy Tins Making Machines

► Metal Cans & Pails Making Machines

► 3-Piece Tin Can Making Machines


We are ready to develop long-term and good relationship with overseas customers.

We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.

Warm welcome friends from all over the world to visit and instruct us!
