Efficiency Precision Induction Drying Oven For Tin Can Manufacturing

Efficiency Precision Induction Drying Oven For Tin Can Manufacturing

Precision Induction Drying Oven

Induction Drying Oven Tin Can Manufacturing

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

CE

Model Number:

DP-113

Contact Us
Request A Quote
Product Details
Color:
Customized
Automatic:
Yes
Certification:
CE
Voltage:
3-phase 380V 50Hz
Condition:
New
Warranty:
1 Year
Burner Power:
1-2KW
Burner Heating Speed:
4m-7m/min
Suitable Small Can Diameter:
φ45mm-φ176mm
Suitable Big Can Diameter:
φ176mm-φ350mm
Can Height:
45mm-600mm
Cooling Water:
>0.4MPa,12-20℃,40L/min
Air Consumption:
≥50L/min>0.5Mpa
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type:
Can Making Production Line
Product Name:
Induction Oven
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden Box/ Customized
Delivery Time
30-90
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
15SETS/Month
Product Description
Enhance Drying Efficiency And Precision With An Induction Drying Oven For Tin Can Manufacturing

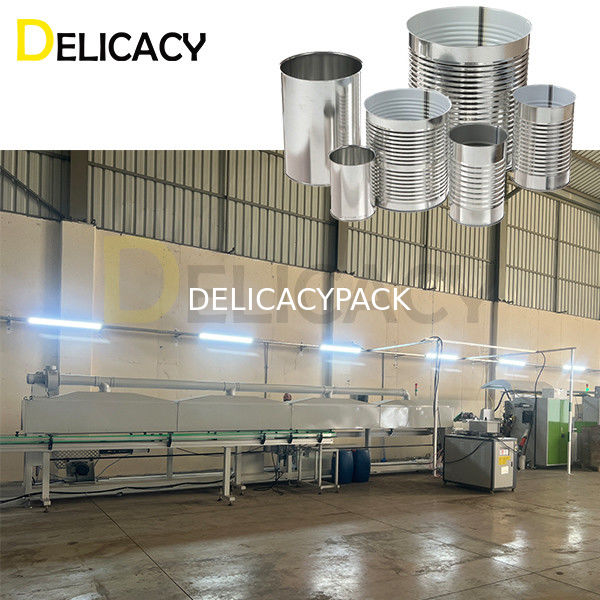

An induction drying oven is an essential component of the production machine line for food, beverage, and milk powder can manufacturing. It is used to dry the cans after the coating or printing process, ensuring proper curing and adhesion of the applied materials. Here are some key points regarding the induction drying oven in the can production machine line:



  1. Advanced Drying Technology: An induction drying oven for tin can manufacturing utilizes advanced induction heating technology to ensure efficient and precise drying of cans. This technology offers rapid and uniform heating, allowing for faster drying times and consistent results across each can.

  2. Improved Energy Efficiency: Induction drying ovens are known for their energy efficiency. By directly heating the cans using electromagnetic induction, they minimize heat loss and reduce energy consumption compared to traditional drying methods. This not only lowers operational costs but also contributes to a more sustainable and environmentally friendly production process.





After repeated testing, research and transformation, the main feature of this machineis energy saving. Each burner needs only 1-2KW, easy to operate.
It uses Japanese Omron color touch control terminal (touch screen), Japanese OmronPLC programmable controller, Japanese Omron intermediate relay; French Schneiderinverter, French Schneider contactor and so on.
The transmission supporter adopts a special custom-made heavy-duty aluminumalloy; it is also equipped with an imported wear-resistant belt with no seam beltthe aluminum alloy and the imported belt contact surface is attached with awear-resistant strip of 1mm to reduces friction to improves durabilityThe conveying adopts the lower conveying type, which is easy to operate and ensuresthat the distance between the weld and the furnace head is unchanged. lt only heatsthe repair area and does not generate heat around the periphery. Each burner can beset intelligently and heated individually or continuously.

-Stepless speed regulation
-Adjustable in conveying speed
-Applicable for different sizes of can bodies
-Only need to change height of conveyor for changeover of can sizes.

Burner power 1-2KW
Burner heating speed 4m-7m/min
Suitable small can diameter φ45mm-φ176mm
Suitable big can diameter φ176mm-φ350mm
Can height 45mm-600mm
Cooling water >0.4MPa,12-20℃,40L/min
Air consumption ≥50L/min>0.5Mpa

Efficiency Precision Induction Drying Oven For Tin Can Manufacturing 0Conveyed by Single belts(sutomatic lifting) Range of can diameter :Φ45mm-Φ180mm

Efficiency Precision Induction Drying Oven For Tin Can Manufacturing 1Conveyed by updraft double belts Range of can diameter :Φ200mm-Φ350mm

Efficiency Precision Induction Drying Oven For Tin Can Manufacturing 2Conveyed by lower double belts(sutomatic lifting) Range of can diameter :Φ153mm-Φ300mm

Efficiency Precision Induction Drying Oven For Tin Can Manufacturing 3Welding seam downwards,conveyed by double belts





FAQ:

1. Q: Are you manufacturer or trading company?

A: We are original manufacturer for 20 years long and have our own research and development team.



2. Q: How can you guarantee quality?
A: 1. With decades of accumulated experience, we own proven technique, professional engineer, skilled staff and strict quality controlling system.
2. We adopts international branded electrical, pneumatic components, such as: Siemens, Panasonic, Schneider, Omoron,etc.
3. Our products acquires multinomial patents and safe certificates.



3. Q: What’s about delivery time, terms of payment and delivery?
A: Generally, products will be delivered 60-90 working days upon receipt of down payment by preferable Bank T/T.

It can be negotiated.
