Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-300

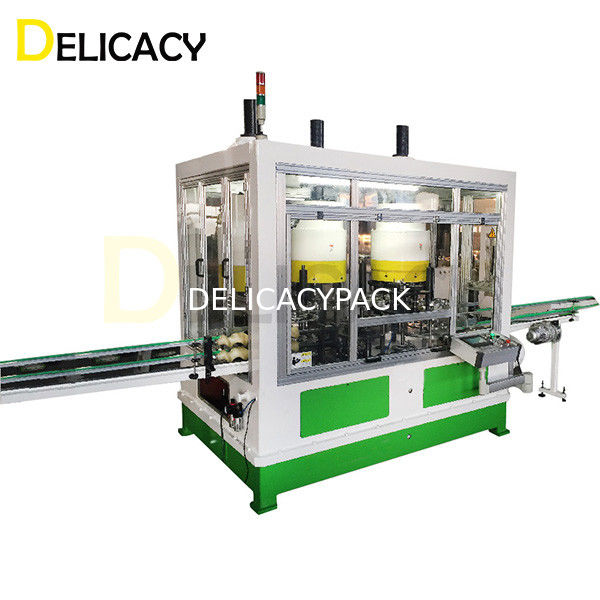

Automatic Aerosol Can Making Machine 200CPM With Flanging Seaming
Product Introduction
It adopts a three-station process: curling, bottom sealing, and top sealing.
The bottom sealing and top sealing employ a dual-knife lid separation system.
The main motor utilizes a variable frequency drive for speed regulation.
It features a fully automatic control system, with PLC programmable logic controller and a display screen for operation interface control.
It incorporates a centralized lubrication system with oil recovery for lubrication purposes.
It allows for quick mold changeovers and easy installation.
MAIN PARAMETERS
| Type | 4H; 8H-8H |
| Capacity | 80-150cpm |
| Rang of Can Dia | F45-F65mm |
| Rang of Can Height | H110-H320 |
| Power | 5.5KW+5.5KW |
| Weight | 3000kg+3800kg |
Advantages:
♥ Vertical design easy to connect with other machines
♥ Multi-sensor design for machine and personnel safety
♥ Flanging spin rolls are driven by tiny gears respectively
♥ Can guide and starwheel with chromiun plating
♥ Recyclable central lubricating system
♥ Inverter for variable speed control
♥ No can no cover system
This machine is suitable for
