Name: Food Beverage Tin Can Making Machine For Welding Seam Induction Drying
Brand: Delicacy
SKU: DP-115
Rating: 5 (160 reviews)

Home > products > Tin Can Production Line >

Food Beverage Tin Can Making Machine For Welding Seam Induction Drying

Beverage Tin Can Making Machine

Welding Tin Can Making Machine

Induction Drying Tin Can Making Machine

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

Model Number:

DP-115

Request A Quote

Food Beverage Tin Can Making Machine For Welding Seam Induction Drying

Product Details

Color:

Customized

Automatic:

Yes

Certification:

Voltage:

3-phase 380V 50Hz

Condition:

New

Warranty:

1 Year

Burner Power:

1-2KW

Burner Heating Speed:

4m-7m/min

Suitable Small Can Diameter:

φ45mm-φ176mm

Suitable Big Can Diameter:

φ176mm-φ350mm

Can Height:

45mm-600mm

Cooling Water:

＞0.4MPa,12-20℃，40L/min

Air Consumption:

≥50L/min＞0.5Mpa

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support

Type:

Can Making Production Line

Product Name:

Induction Oven

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden Box/ Customized

Delivery Time

30-90

Payment Terms

T/T, L/C, Western Union, MoneyGram

Supply Ability

15SETS/Month

High-Speed And High-Precision Automatic Aerosol Caps Production Line Efficiency And Quality

Get Best Price

Efficient And Precise: Automatic Curling Lining Machine For Rectangular Ends

Get Best Price

Robotic Can Lid Lining Machine: Streamlining Lid Production With Automation

Get Best Price

video

Full Automatic CNC Tin Can Production Line , EOE End Tinplate Sheet Feed Press

Get Best Price

Contact Now

Product Description

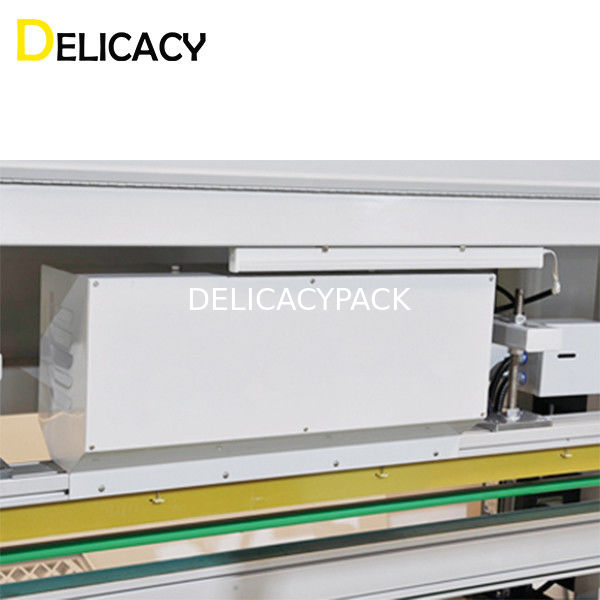

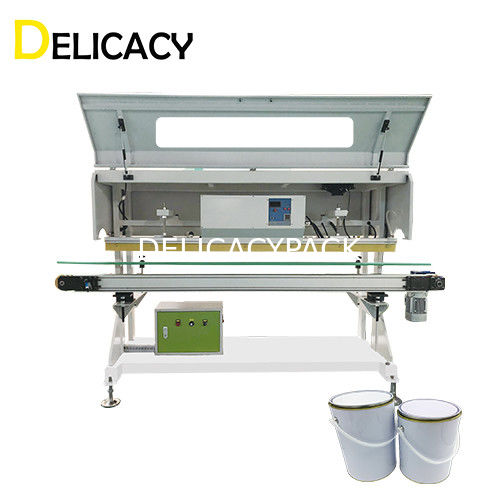

Food & Beverage Tin Can Body Making Machine -Welding Seam Induction Drying Oven

It works based on the SPWM technology, generating vortex heating by A/C on the welding seam area for curing . Induction oven is characteristic with energy saving , environment-friendly & safety. It fits different can sizes and different speed of production line.

Product Feature:

* Heater quantity can be adjusted according to custom requirement

* Our machine is automatically diameter adjustment by touch panel

* Low energy comsumption;

* Touch panel control

* Latest technology rare earth application on heater

* PID (proportional integral differential coefficient) control on power output

* Synchronized conveying speed.Fully digitalized

* Self-protection system and auto can kick out system if machine jam

After repeated testing, research and transformation, the main feature of this machineis energy saving. Each burner needs only 1-2KW, easy to operate.

It uses Japanese Omron color touch control terminal (touch screen), Japanese OmronPLC programmable controller, Japanese Omron intermediate relay; French Schneiderinverter, French Schneider contactor and so on.

The transmission supporter adopts a special custom-made heavy-duty aluminumalloy; it is also equipped with an imported wear-resistant belt with no seam beltthe aluminum alloy and the imported belt contact surface is attached with awear-resistant strip of 1mm to reduces friction to improves durabilityThe conveying adopts the lower conveying type, which is easy to operate and ensuresthat the distance between the weld and the furnace head is unchanged. lt only heatsthe repair area and does not generate heat around the periphery. Each burner can beset intelligently and heated individually or continuously.

-Stepless speed regulation

-Adjustable in conveying speed

-Applicable for different sizes of can bodies

-Only need to change height of conveyor for changeover of can sizes.

Burner power	1-2KW
Burner heating speed	4m-7m/min
Suitable small can diameter	φ45mm-φ176mm
Suitable big can diameter	φ176mm-φ350mm
Can height	45mm-600mm
Cooling water	＞0.4MPa,12-20℃,40L/min
Air consumption	≥50L/min＞0.5Mpa

Food Beverage Tin Can Making Machine For Welding Seam Induction Drying 0 Conveyed by Single belts(sutomatic lifting) Range of can diameter :Φ45mm-Φ180mm

Food Beverage Tin Can Making Machine For Welding Seam Induction Drying 1 Conveyed by updraft double belts Range of can diameter :Φ200mm-Φ350mm

Food Beverage Tin Can Making Machine For Welding Seam Induction Drying 2 Conveyed by lower double belts(sutomatic lifting) Range of can diameter :Φ153mm-Φ300mm

Food Beverage Tin Can Making Machine For Welding Seam Induction Drying 3 Welding seam downwards,conveyed by double belts

FAQ:

1. Q: Are you manufacturer or trading company?

A: We are original manufacturer for 20 years long and have our own research and development team.

2. Q: How can you guarantee quality?
A: 1. With decades of accumulated experience, we own proven technique, professional engineer, skilled staff and strict quality controlling system.
2. We adopts international branded electrical, pneumatic components, such as: Siemens, Panasonic, Schneider, Omoron,etc.
3. Our products acquires multinomial patents and safe certificates.

3. Q: What’s about delivery time, terms of payment and delivery?
A: Generally, products will be delivered 60-90 working days upon receipt of down payment by preferable Bank T/T.

It can be negotiated.
