75Kw 5L Tin Can Production Line , Powder Coating Chemical Can Making Machine

Steel Chemical Paint Pails Production Line Electrostatic Rivet Spot Powder Coating Metal Tin Can Making Machine

1. INTRODUCTION TO SMALL ROUND CAN​

It is 3-pc can (mostly made of tinplate material) consisting of can body, lid and bottom. The can is round shaped. The can capacity is generally 0.5-5L, diameter 50-180mm, and height 80-320mm.

The cans are widely used for chemicals, paints, lubricant oil, etc.


2. BASIC SPECIFICATIONS AND PRODUCTION PROCESS OF AUTOMATIC SMALL ROUND CAN MAKING LINE​

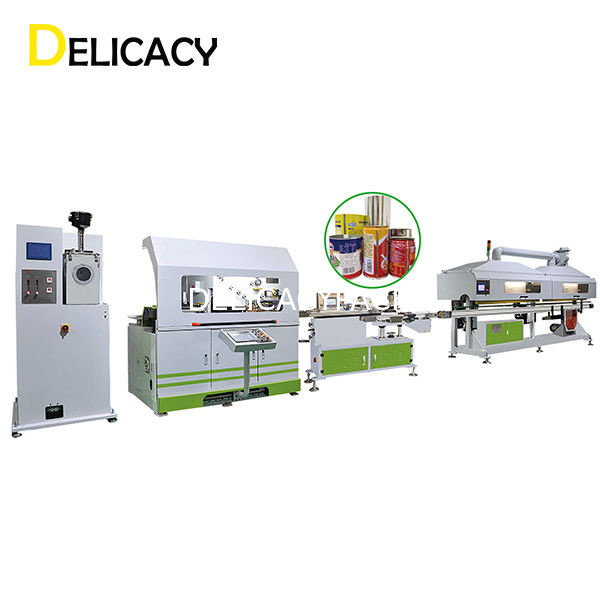

The production line is applicable for the automatic production of 0.5L-5L small round cans.

Can diameter range: 50-180mm

Can height range: 80-320mm

Production capacity: 55-60cpm.

Total power: about 75Kw

Floor space needed: about100㎡

Manpower required: 3-4 workers

Technical workflow: body blank slitting - rounding - body welding - internal & external welding seam coating - top & bottom flanging - bottom seaming - turnover - top seaming - ear lug welding - leak testing - packing.

3. THE LAYOUT OF THE PRODUCTION LINE​

4. ADVANTAGES AND DISADVANTAGES OF THE FULL-AUTOMATIC PRODUCTION LINE OFCONICAL PAIL​

Advantages: the whole production line adopts automatic computer programming control system, fully realizing the full automatic assembly line work.Only 1-2 workers are needed to complete the operation of the entire production line.The whole production line has fast production speed, high production efficiency, automatic fault detection system and low rejection rate.
Disadvantages: compared to semi-automatic production line, the initial investment capital is larger. For the start-up enterprises,It is recommended to use semi-automatic production line with less capital in.

5.DELICACY PRODUCTS AND PEER PRODUCTS COMPARISON​

Delicacy products: through professional design, the whole production line can achieve quick replacement of double seaming and triple seaming requirements, adjustable expanding rib mold, precise cooperation of imported guide rail and profile combined with servo motor, to ensure fast flow conveying system. Eight roller can sealing head and can sealing quality are stable and fast. At the same time, the sealing head is specially designed, which has the characteristics of low noise and high efficiency.

Products of the same industry: the whole production line can only achieve the production of double seaming or triple seaming. The expanding mould is fixed and can not be adjusted at will. Common profile and domestic track, combined with stepping motor coordination, lack of stability and accuracy. There are only four rollers in the head of the can sealer, so the quality and speed will have a certain impact. At the same time, the machine head adopts old-fashioned design, and the production noise is large.

6.APPLICATION INDUSTRY​

This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be used in the production of food cans, paint cans, edible oil cans, paint cans, milk powder cans, aerosol cans, etc.

7.APPLICABLE COUNTRIES AND REGIONS​

Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: Malaysia, Indonesia, Philippines, Vietnam, Thailand, India, dubai and so on.

Applicable to countries or regions with high output and high product quality. For example: Saudi Arabia, dubai, Russia, Canada, South Korea, Turkey and so on..

8.WHY TO CHOOSE DELICACY PRODUCTS?​

1. Established 20 years ago, Delicacy technology is a well-known brand in the Chinese industry.
2. Delicacy technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
3. Once choosing Delicacy technology products, Delicacy technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
