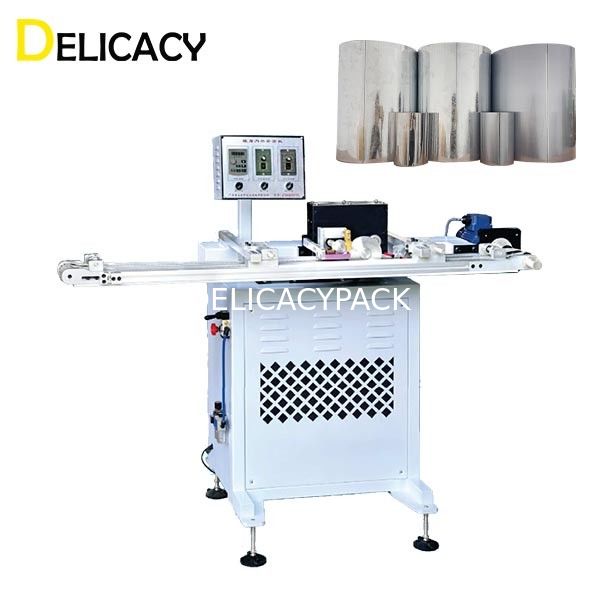

60m / Min Tin Can Manufacturing Machine For External Lacquer Spray Coating

60m / Min Tin Can Manufacturing Machine For External Lacquer Spray Coating

60m/Min Tin Can Manufacturing Machine

Spray Coating Tin Can Manufacturing Machine

External Lacquer Spray Coating Machine

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

CE

Model Number:

DP-100

Contact Us
Request A Quote
Product Details
Color:
Customized
Automatic:
Yes
Certification:
CE
Voltage:
3-phase 380V 50Hz
Condition:
New
Warranty:
1 Year
Applicable Can Diamet:
φ52mm-φ350mm
Applicable Can Height:
50mm-600mm
Coating Speed:
8-16m/min/25-50m/min
Outside Coating Width:
8-18mm
Compressed Airm:
0.4MPA/CM²
Input Power:
380V/50HZ
Dimension(LxWxH):
1800mmX600mmX1300mm
Weight:
About 500Kg
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type:
Paint Can Production Line
Product Name:
Induction Oven
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden Box/ Customized
Delivery Time
30
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
15SETS/Month
Product Description
60m / Min External Lacquer Spray Coating For Tin Can Manufacturing Machine


For protection of welding seam of can bodies after welding.
Suspension type belt conveying, stable conveying for can bodies, no scratch on can bodies.
Compact structure, bi-directional adjustment for belt width, suitable for conveying various can sizes.



Introduction and configuration:

The machine adopts Japan Omron PLC programmable controller, color touch control terminal (touch screen) and pneumatic components all adopt Taiwan Yadeke brand.

The transfer bracket is made of special custom heavy duty aluminum alloy.

The conveyor belt uses a seamless belt wire timing belt for durability and smoothness.

The external sprayer adopts spray coating and roller coating, both of which are available for users to choose.





PARAMETTRE
适用罐径 Applicable can diameter: Φ52-Φ350
适用罐高 Applicable can height: 60-600mm
补涂速度 oating speed: 10-45m/min
外补涂宽度 Coating width: 10-16m/min
压缩空气 Coating air: 0.4Mpa/cm2
设备功率 Power: 50/60Hz P=400W
电源电压 Input power: UVW 380V, 50/60HZ
外形尺寸 Dimension: 1950×780×1550mm
整机重量 Weight: 500Kg





Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.

As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.



We manufacturer and export the following series of products:

► Easy Open End Production Lines

► 2-Piece DRD Can Production Lines

► Metal Caps & Closures Production Lines

► Metal Ends Production Lines

► Aerosol Cone & Dome Production Lines

► Fancy Tins Making Machines

► Metal Cans & Pails Making Machines

► 3-Piece Tin Can Making Machines



We are ready to develop long-term and good relationship with overseas customers.

We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.

Warm welcome friends from all over the world to visit and instruct us!
