Place of Origin:
CHINA
Brand Name:
Delicacy
Certification:
CE
Model Number:
DP-142

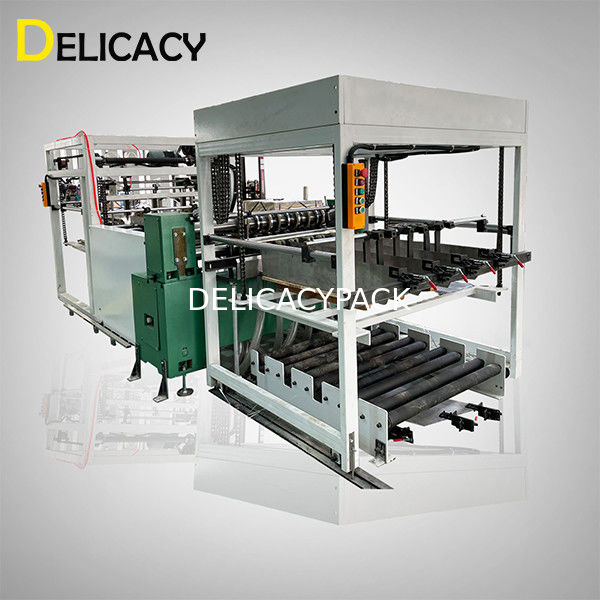

Automatic Sheet Feeding And Stacking Machine/ Slitter Automatic Gang Slitter For Can Making
Including automatic sheet feeder, feeding erection platform, slitter, cutter grinder, body blank stacker and waste trimming material collector
With 8 pairs of carbide cutters
| Min. sheet size | 400*400mm |
| Max. sheet size | 1100*1100mm |
| Sheet thickness | 0.15-0.5mm |
| Max. speed | 48 sheets/min |
| Total power | 7.5Kw |
| Voltage | AC 380V 50Hz |
| Air pressure | 0.4-0.6MPa |
| Total weight | about 3000Kg |
| Payload of feeder & stacker | 3000Kg |
| Overall dimension | 6000*1800*1700mm |
Advantages:
1. Our duplex slitter takes the tinplate with a vacuum, and uses a gear motor to automatically control the height of the tin plate.
2. The wheel cutter's rotation is stable and has a sleep operation, allowing the can body blanks to be uniform in size.
3. The single adjuster ensures the right angle both vertically and horizontally.
4. Our duplex slitter is simply designed and is easy to maintain or replace.
5. The oil pressure wheel cutter holder and the tungsten steel blade can be installed, but are not required.
6. The duplex slitter is equipped with Mitsubishi electrical control components and Yuken hydraulic components, offering high accuracy and stability, easy operation and easy adjustment.
Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.
As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.
We manufacturer and export the following series of products:
► Easy Open End Production Lines
► 2-Piece DRD Can Production Lines
► Metal Caps & Closures Production Lines
► Metal Ends Production Lines
► Aerosol Cone & Dome Production Lines
► Fancy Tins Making Machines
► Metal Cans & Pails Making Machines
► 3-Piece Tin Can Making Machines
We are ready to develop long-term and good relationship with overseas customers.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
Warm welcome friends from all over the world to visit and instruct us!
