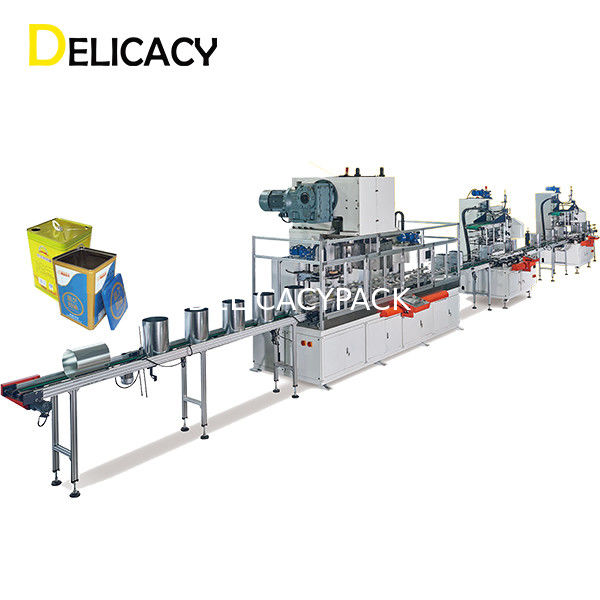

18Ltr Large Big Metal Rectangular Square Engine Oil Tin Paint Can Maker Packaging Making Machine Production Line



1. INTRODUCTION TO BIG SQUARE CAN


It is 3-pc can (mostly made of tinplate material) consisting of can body, lid and bottom. The can is square shaped. The can body has embossing on all four sides. The can capacity is generally 10-20L, diagonal 300-320mm, and height 170-450mm.
The cans can be used for various products like food, chemical, paint, edible oil, lubricating oil, medicine, etc.

2. BASIC SPECIFICATIONS AND PRODUCTION PROCESS OF BIG SQUARE CAN MAKING LINE​

The line is applicable for automatic production of 10-20L square cans.
Production capacity: 20-30CPM
Total power: about 90Kw
Floor space needed: about 100 square meters
Manpower required: 3-4 workers
Technical workflow: body blank slitting - rounding - body welding - internal and external welding seam coating - induction curing - cooling conveyor - square expanding - embossing - top & bottom flanging - bottom seaming - turnover - top seaming - leak testing - packing.


3. EQUIPMENT COMPOSITION OF BIG SQUARE CAN PRODUCTION LINE​



Automatic single slitter​



18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 0









Gang slitter with automatic feeder and stacker
Maximum sheet size (L*W) 1100*1100mm
Minimum sheet size (L*W) 200*400mm
Maximum speed 50 sheets/min
Power supply 380V/50Hz
Total power 3.5Kw
Gross weight 1800Kg
Feeder & stacker payload 3T



Automatic body welder​

18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 1



Fully automatic can body welding machine
Welding frequency 100-280Hz
Welding speed 10m-20m/min
Production capacity 25-35 cans/min
Can diameter Φ220-Φ300mm
Can height 220-500mm
Tinplate thickness 0.2-0.4mm
Copper wire diameter Φ1.5-Φ1.8mm
Overlap 0.6-1.0mm
Power supply 3-phase 380V 50Hz
Installation power 20Kw
Cooling water 12-20℃, 40L/min
Air consumption ≥200L/min, >0.5Mpa
Gross weight about 3000Kg
Dimension(L*W*H) 2200*1520*1980mm



Powder coating machine​


18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 2

Internal welding seam powder coating machine
Can diameter Φ52-Φ350mm
Transfer speed 10-20m/min; 20-60/min
Coating width 6-14mm
Powder material Polyester epoxies
Installation power 2.5Kw
Air consumption ≥300L/min, >0.5Mpa
Input power AC 220V, 50Hz
Gross weight about 500Kg
Dimension(L*W*H) 900*900*2200mm



Lacquer coating machine​


18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 3

External welding seam lacquer coating machine
Can diameter Φ52-Φ350mm
Can height 50-600mm
Coating speed 8-16m/min; 25-50m/min
Coating width 8-18mm
Compressed air 0.4Mpa/cm²
Input power AC 380V/50Hz
Dimension (L*W*H) 1800*600*1300mm
Gross weight 500KG



Induction oven​

18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 4

Electromagnetic drying oven
Hearter power 1-2Kw
Production speed above 200 cans/min
Can diameter Φ45-Φ176mm
Can height 45-600mm
Cooling water >0.4MPa, 12-20℃, 40L/min
Air consumption ≥50L/min, >0.5Mpa
Voltage AC 380V/50Hz



Automatic can body forming machine​

18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 5

Fully automatic can body forming machine
Production capacity 20-30 cpm
Diagonal range 300-320mm
Can height range 170-450mm
Material thickness ≤0.4mm
Total power about 40Kw
Air pressure 0.3-0.5Mpa
Dimension (L*W*H) 3020*1420*3100mm
Gross weight about 9T





Leak tester​

18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 6

Rotary type inline leak tester
Applicable can size range 10-20L
Air pressure 4-6Bar
Testing pressure 10-15Kpa
Detection speed 20-30 cans/min
Detection accuracy 0.15mm
Gross weight about 3800Kg
Dimension (L*W*H) 4000*1200*2300mm
Input power 380V/50Hz



4. SKETCH LAYOUT OF THE PRODUCTION LINE​

18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 7

18L Rectangular Square Oil Tin Making Machine 30CPM For Paint Can Production 8



5. ADVANTAGES OF AUTOMATIC BIG SQUARE CAN PRODUCTION LINE​



The whole production line adopts automatic computer programming control system, fully realizing the automatic forming operations. Only 3-4 workers are needed to operate the entire line. The line is with high production speed, enhanced efficiency and low waste rate.



All stations of the whole production line are made by high hardness and wear-resistant materials. The guide rails and profiles are combined with precise coordination of servo motors to ensure a fast conveying system. Meanwhile, the seaming machine head adopts special design which has the feature of low noise and high efficiency. With 8-wheel seaming machine head, the sealing quality is fast and stable.
