Automatic Strip Feeding Tin Can Manufacturing Machine For Can Lids 125mm Bottom 99mm Bottom

Automatic Strip Feeding Tin Can Manufacturing Machine For Can Lids 125mm Bottom 99mm Bottom

99mm Bottom Tin Can Manufacturing Machine

125mm Bottom Tin Can Manufacturing Machine

Strip Feeding Tin Can Manufacturing Machine

Place of Origin:

CHINA

Brand Name:

Delicacy

Certification:

CE

Model Number:

DP-251

Contact Us
Request A Quote
Product Details
Color:
Customized
Automatic:
Yes
Certification:
CE
Voltage:
3-phase 380V 50Hz
Condition:
New
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type:
Tin Box Making Machine
Product Name:
Automatic Strip Feeding System
Max Feeding Speed:
50-70CPM
Power:
7.5Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden Box/ Customized
Delivery Time
180
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
15SETS/Month
Product Description

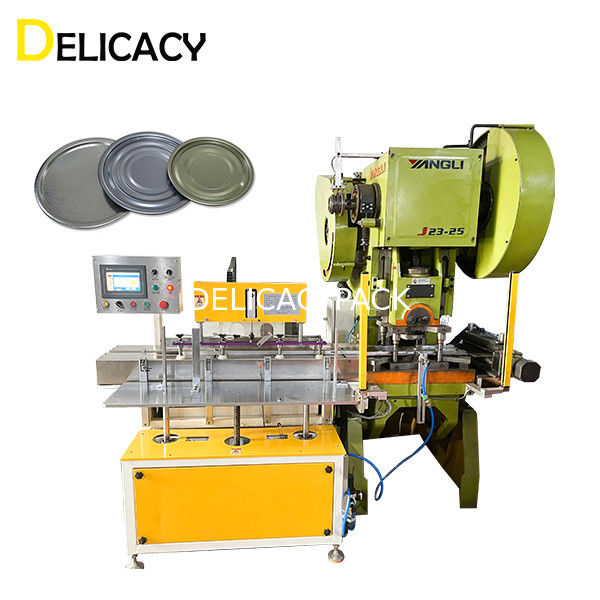

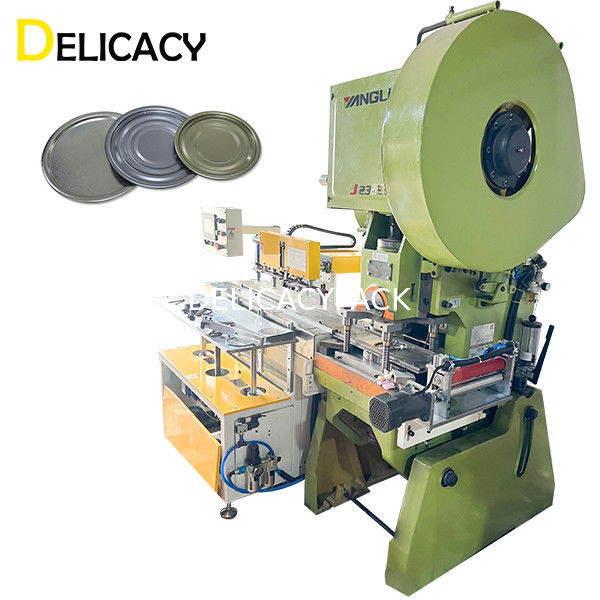

Automatic Strip Feeding System For Can Lids 125mm Bottom And 99mm Bottom



This system can be used on multi-station punching presses for automation of decorative can body & component making. It includes the mechanical arm clamping system and belt conveyor. The system is equipped with servo motors and the suckers can be positioned precisely for can body or end conveying. The general production speed and safety features can be greatly enhanced.



Automatic Strip Feeding System



Speed: 20-50 strips/min (subject to strip sizes)
Maximum applicable strip length: 1000mm
Maximum applicable strip width: 200mm
Screw rod: TPI
Pneumatic parts: Airtac
Main electric parts: Schneider, Omron
PLC control sysyem: Mitsubishi
Touch panel: Delta
Servo motor: Delta
Voltage: AC 3-phase 380V 50Hz

Press

25T press for roud end blanking
Brand: Yangli
Model: J23-25
Slide stroke: 80mm
Max. stroke times: 60SPM
Maximum die height: 180mm
Die height adjustment: 70mm
Main motor power: 2.2Kw
Dimension: 1325*990*2140mm
Including grating device for safety protection


Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.

As a rich experienced manufacturer & exporter in this field, we listen to customers' needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.



We manufacturer and export the following series of products:

► Easy Open End Production Lines

► 2-Piece DRD Can Production Lines

► Metal Caps & Closures Production Lines

► Metal Ends Production Lines

► Aerosol Cone & Dome Production Lines

► Fancy Tins Making Machines

► Metal Cans & Pails Making Machines

► 3-Piece Tin Can Making Machines



All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
